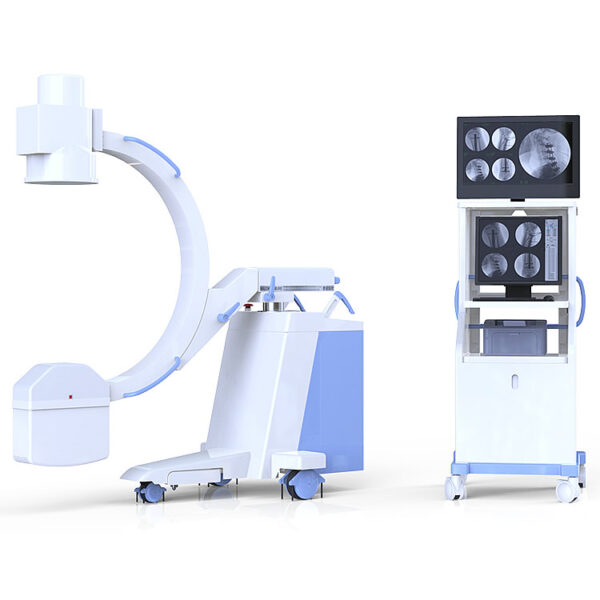

WMC-RC-X112 High Frequency Mobile Digital C-arm System
Orthopaedics: osteopathy, diaplasis, nailing.
Features
- High quality combined high frequency high voltage xray generator reduces xray dose to body.
- With function of kV, mA automatically track (ABS) in fluoroscopy to make the image brightness and clearness
- Real time continuous Pulse Fluoroscopy with low dose, but meet operation demand with clearness image
- Human graphical LCD touch screen, intelligent and fast operation
- A unique hand-held controller design, convenient to operate
- Toshiba image intensifier and Medical Mega-pixels digital CCD camera, the quality is stable and reliable, and image clarity
- Powerful digital graphic workstation with standard configuration of DICOM 3.0 connected to network perfectly, and perfect software
- Unique design of electric auxiliary support arm is more security for using.
- New C-arm frame with a compact appearance, and easy to operate
- Digital radiography with powerful processing program
- Automatically store the last image of fluoroscopy to advantage diagnosis
Technical data
| Category | Item | Content |
| Fluoroscopy/ Photography | High Frequency Inverter Power Supply | Output Power:3.5kW Inverter Frequency:40kHz |
| Automatic Fluoroscopy | Tube Voltage: 40kV-110kV automatic adjustment | |
| Tube Current:0.3mA-4mA automatic adjustment | ||
| Manual Fluoroscopy | Tube Voltage:40kV-110kV continuous adjustment | |
| Tube Current:0.3mA-4mA continuous adjustment | ||
| Pulse Fluoroscopy | Tube Voltage:40kV-110kV continuous adjustment | |
| Tube Current:0.3mA-8mA continuous adjustment | ||
| 0.1-10 Frame/s | ||
| Photography | 40 kV-110 kV | |
| Tube Voltage, mA, mAs | 20-63mA | |
| 1-125 mAs | ||
| Plate holder Size | 200mm×250mm(8″×10″)or | |
| 250mm×300mm（10″×12″） | ||
| X-ray Tube | X-ray Tube Special for High Frequency | Fixed anode Dual-focus: 0.3/ 1.5mm |
| Anode Thermal Capacity:35kJ | ||
| Video System | Image Intensifier | TOSHIBA 9″ image intensifier |
| CCD Video camera | Medical Mega-pixels digital CCD camera | |
| Monitor | 14’’ high-definition Medical VGA monitor | |
| Horizontal 1000 lines and vertical 800 lines, | ||
| FH 48kHz, FV75Hz | ||
| Work Station Software | Storage without damage, multi-images display, image W/L real time adjustment, grayscale switch, region of interest balance, GAMMA correction, flip, noise reduction, intensifying, smoothing, sharpening, compression, zoom in, measurement, remark, picture-text typeset print, expert template, DICOM image transmit, DICOM image print, cineloop, image imprinting, Worklist registration etc. | |
| Structural performance | Directive wheel | Direction wheel 360°rotation, main wheel ±90°rotation |
| C-arm | Electric Ascending & Descending of pillar movement: 400mm | |
| Forward and Backward Movement: 200mm | ||
| Revolution around Horizontal Axis: ±180° | ||
| Revolution around Vertical Axis: ±15° | ||
| Slip on orbit: 120°(+90°～ -30°) | ||
| SID: 960mm Opening: 750mm Arc depth: 640mm |
