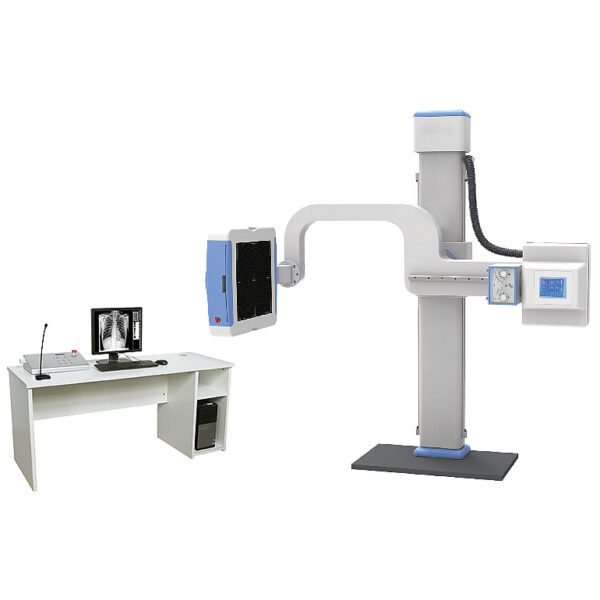

WMC-RC-X8500-202 HF Digital Radiography System
This machine is applied to take radiography on every part of human body, such as head, limbs, chest, limbus and abdomen and etc.
Features
- Type of generator and X-ray tube.
- Flat Panel Detector.
- Apply with domestic brand Flat panel detector, which could give perfect digital images directly.
- 3K×3K Acquisition matrix, 143um pixels size, and 3.7Lp/mm ultimate spatial resolution, with DQE values ≥70%.
- 17〞×17〞Large acquisition area and with the non-center processing technology, no matter the center and border, the quality of the image is the same.
- The detector could be rotated ±45 degree along the axis direction, to satisfy the different photograph requirement of every body parts, such as Ankle joint, lateral spine.
- The detector has the self-protection function.It can stop to move when it detect the distance in front of the barrier.
- Digital Working Station.
- Operation System.
- Be equipped with19〞LCD high resolution monitor screen，the delicate and richness degree of image is far higher than the normal medical monitor.International advanced level.
- These features can make the doctor diagnose more accurate and smooth.
- Human graphical touchable screen.Just need a slight click on the human body position and shape,the parameters can be set easily.
- Be equipped with the microphone and remote exposure control.The doctor can control outside the operating room.
- Be equipped with various set of infrared facilities to protect the machine from the mis-operation of the doctors.
- Optional PLXF153 operating room.Battery power supplied, Infrared unlock.
- Optional CODONICS, digital printer.
- Mechanical Movement.
- The self-designed and manufactured electric U-arm mainframe can move up and down, and rotate in a wide range, which can satisfy the requirements of multi-site photography.
- Adopting original Italian geared motor, the features are reliable performance,lower noise,longer service life.
- The unique three three-dimension and three independent control system,can achieve one-key reposition.
Technical data
| High-frequency X-ray machine | Output power | 25kW | |
| Main inverter frequency | 40kHz | ||
| X-ray tube | Dual-focus X-ray tube | Small focus:0.6 Large focus:1.3 | |
| Output power | 11kW/32kW | ||
| Anode Capacity | 80kJ(107kU) | ||
| Anode Angle | 15° | ||
| Speed of rotating anode | 3000rpm | ||
| Tube Current | 200mA | ||
| Tube voltage | 40-125kV | ||
| mAs | 0.4-360mAs | ||
| AEC | Option | ||
| Digital Image System | Digital Detector | Field of view | 17”*17” |
| Pixel | 3K*3K | ||
| Ultimate spatial resolution | 3.7LP/mm | ||
| Pixel size | 143um | ||
| Output grayscale | 14bit | ||
| Imaging time | ≤9s | ||
| Image Workstation | Acquisition module | Inside enhancement module | |
| Image information management | Dicomimage transmission | ||
| Dicomfilm printing | |||
| Dicomimage storage(hard disk, compact disk) | |||
| Mechanical structure and performance | U-arm | Vertical movement range | ≥1250 mm(motorized control) |
| Focus-screen movement range | ≥800mm(motorized control) | ||
| Rotation range | -40°-+130°(motorized control) | ||
| Detector rotation | -40°-+40° | ||
| Photography table (Optional) | Table size | 2000mm*650mm | |
| Table height | ≤740mm | ||
| Transverse movement | 200mm(electromagneticlock) | ||
| Longitudinal movement | 100mm(electromagnetic lock) | ||
| Power supply | 380V 50/60Hz | ||
Options
PLXF153Intelligent All-Directions Mobile Table, electromagnetic control of floating table surface, chargeable.
(2000×650×740mm, Longitudinal movement: 200mm, Horizontal movement:100mm)
