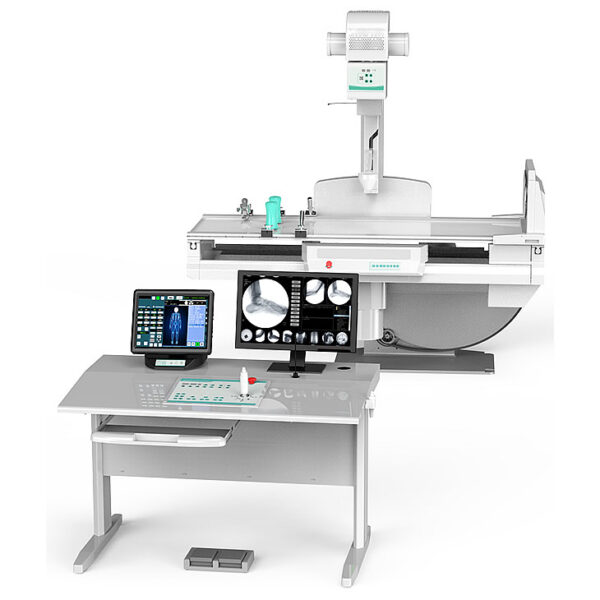

WMC-RC-D5600A High Frequency Radiography & Fluoroscopy Digital X ray System
Full support perspective gastrointestinal spot film GI (barium meal barium enema) orthopedic photography pediatrics photography.
Features
- High quality combined high frequency high voltage xray generator reduces xray dose to body.
- With function of kV, mA automatically track (ABS) in fluoroscopy to make the image brightness and clearness
- Real time continuous Pulse Fluoroscopy with low dose, but meet operation demand with clearness image
- Human graphical LCD touch screen, intelligent and fast operation
- A unique hand-held controller design, convenient to operate
- Toshiba image intensifier and Medical Mega-pixels digital CCD camera, the quality is stable and reliable, and image clarity
- Powerful digital graphic workstation with standard configuration of DICOM 3.0 connected to network perfectly, and perfect software
- Unique design of electric auxiliary support arm is more security for using.
- New C-arm frame with a compact appearance, and easy to operate
- Digital radiography with powerful processing program
- Automatically store the last image of fluoroscopy to advantage diagnosis
Technical data
| Item | Content | Technical parameter | |
| Power supply | Voltage | 380V±38V | |
| Frequency | 50Hz±1Hz | ||
| Capacity | ≥65kVA | ||
| internal resistor | ≤0.17Ω | ||
| Digital X-ray high voltage system (import high-frequency generator ) | photography | Power Output | 50KW |
| Inverter Frequency | 200KHZ | ||
| Tube Voltage | 40kv—150kv step regulation | ||
| Tube Current | 10mA—630mA step regulation | ||
| Exposure time | 1.0s—6300ms step regulation | ||
| Control interface | Touched LCD | ||
| Control hand | One-button operation handle | ||
| Fluoroscopy | Tube Voltage | 40kv—120kv ontinuous regulation | |
| Tube Current | 0.5mA—6mA continuous regulation | ||
| Digital Controlled X-ray Tube | Tube Brand | Toshiba | |
| Tube Focus：Large Focus/Small Focus | 1.2mm /0.6mm | ||
| Input Power | Large focus: 50kW small focus: 19kW | ||
| thermal capacity | 300 KHU | ||
| Rotary anode speed | 3000rpm | ||
| Micro-computer control remote diagnostic table | Material of the tabletop | high strength、low absorb carbon fiber | |
| Rotation of the table | 90°~0°~-25° | ||
| Transverse travel of table | ±110mm | ||
| Longitudinal travel of the photography holder and film spot device | ≥720mm | ||
| X-ray Focus—film gauge | 1100 mm—1500 mm | ||
| Rotating foot plate | ±360° rotation | ||
| Full film photography size | 8″×10″—14″×17″ | ||
| Compressor force | 80N-130N | ||
| Dividing method for spot film | Full film, half dividing, three parts dividing, four parts dividing | ||
| Control method for diagnostic table | Remote、table control、frequency conversion soft starting and stopping | ||
| beam limiter | Electric Multi-leaf | ||
| fixed bucky device for table | Grid density: 103L/INCH, Grid ratio: 10:1,focusing distance: 120cm，fixed type: 15″×18″ | ||
| Intensifier and CRT Monitor | Image Intensifier | Toshiba (9”/6”/4.5″) Image Intensifier | |
| high resolution CCD （digital cameras） | ultra-low-light，standard 1000，000 pixel | ||
| Monitor (Optional ) | 14〞medical high definition monitor, horizontal central resolution ratio :1000 lines，fringe: 800 lines，video bandwidth: 12.5MHz，50bit，image number/second: 25 frame | ||
| workstation | i5-6500（3.20 GHz）,4 GB DDR3, 500GB SATA (7200 rpm), work list ; DSI function; Gather and deal with image ;Spot Film Acquire Image ;Image Playback ;Rich Image Processing Function ;X-ray Film Printer Function : Report Edit and Print Function ; | ||
| LCD colorful screen | 19” LED Medical Use High Definition Monitor | ||
