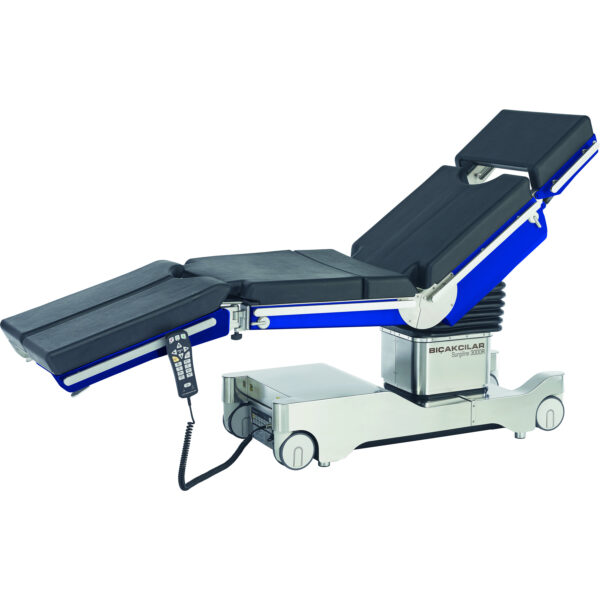

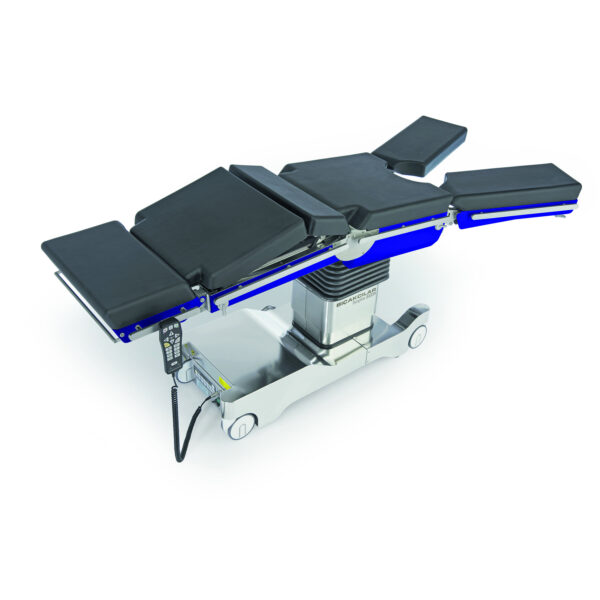

SURGILINE 3000R SURGICAL TABLE

Bıçakcılar Surgiline 3000R Surgical Table is designed to accommodate various types of patient positioning required for demanding surgical procedures, with ultimate care to the patient and user safety.

Surgical position of Surgiline 3000R are adjusted by an electrohydraulic system. Surgiline 3000R surgical table has up/down, sliding, trendelenburg, reverse trendelenburg, right/left lateral, kidney elevator, reflex and flex positions. Positions are adjusted with remote control, in a quiet and nonvibrating manner at constant speed. In case of any remote control malfunction, emergency control button located on the table base can be used to adjust the table positions.

The tabletop is made of liquid resistant material. The tabletop consisting of head, back (two piece), sitting and foot (left and right) sections is covered with a specially designed six piece polyurethane mattresses of 60 mm thickness that provides patient safety and hygiene requirements. These mattresses; It is made from antistatic, liquid resistant, seamless and polyurethane material. Mattresses is mounted on table top frame with mushroom-head screw. If needed, they are easily removed and disinfected.

Technical Details

Height adjustment: 650 – 1000 mm

Height adjustment (w/mattress): 710 – 1060mm

Mattress height: 60 mm

Tabletop: 550 x 2135 mm

Table base: 490 x 1100 mm

Head section: 525 x 355 mm

Backrest section: 550 x 680 mm

Seat section: 550 x 61O mm

Right leg section: 265 x 650 mm

Left leg section: 265 x 650 mm

Voltage: 230V, 50Hz

Motor inputs: DC 24V, 1OA

Battery: DC 12V, 12Ah, maintenance free, lead acid

Low Battery Level Alarm: Sound Alarm

Battery recharge time: 18h (full charge)

References Numbers

M2B 750 0 0

Packing Details

 Net weight: 265 kg

Gross Weight: 310 kg

Packing dimensions: 1000x 1680x 1100 mm

Positions

Head section: Upward 45°, Downward 60°, Removable

Backrest section: Upward 80°, Downward 40°

Leg section: Upward 30°, Downward 90°, Spreading 90°, Removable, Independent movement

Lateral: Right 20°, Left 20°

Trendelenburg: 35°

Reverse trendelenburg: 35°

Kidney elevator: 90mm

Reflex: 100°

Flex: 220°

Horizontal tabletop sliding: 350 mm

Levelling: The tabletop is made parallel to the ground except the head and foot section.

Accesories

  1. Anaesthetist’s frame

  2. I.V. stand

  3. Shoulder support

  4. Body support

  5. Surgical table arm boards

  6. Arm support

  7. Arm/hand surgical table

  8. Wrist grip

  9. Knee crutches

  10. Arthroscopic knee crutch

  11. Leg rest – Lithotomy position

  12. Foot supports

  13. Foot pedal

  14. X-ray cassette holder

  15. Waste tray

  16. Body strap

  17. Compact stand for surgical table accessories

  18. Orthopedic traction system

  19. Horseshoe headrest

  20.  Skull clamp

  21.   Crossbar adaptor for skull clamp

  22. Stand for skull clamp and horseshoe headrest

  23.  Carbon fiber leg section

  24. Arthroscopic shoulder support
