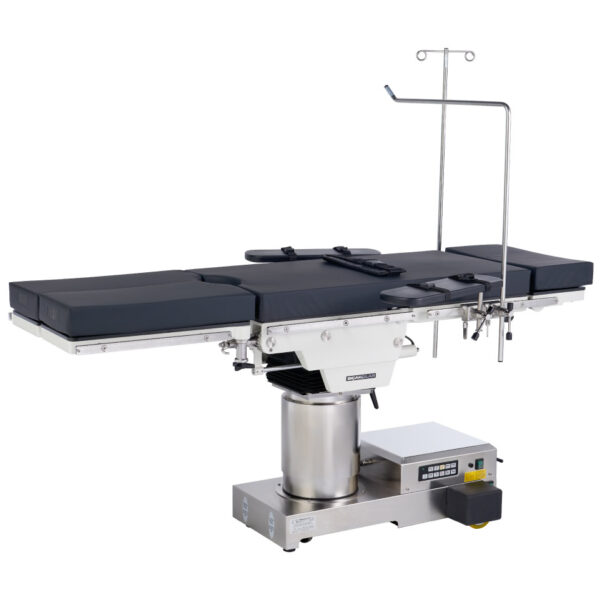

SURGILINE 2000E SURGICAL TABLE

Bıçakcılar Surgiline 2000E Surgical Table is designed to accommodate different patient positions required for demanding surgical procedures, with an ultimate focus on patient and user safety.

Surgical positions of Surgiline 2000E are adjusted by an electrohydraulic system. Surgiline 2000E Surgical Table has up/down, sliding, Trendelenburg/reverse Trendelenburg, right/left lateral, renal surgery, Trendelenburg and back section upward combination, and back section tabletop positions. Positions are adjusted with remote control, in a quite and nonvibrating manner at constant speed.

The tabletop consists of four sections: head, backrest, seat and leg, each with removable, easy to clean, anti-bacterial, and waterproof 80 mm mattress  for  patient comfort. Easy to install radiographic tabletop kit* enables using Surgiline 2000E for x-ray procedures.

Technical Details

Height adjustment: 725 – 1055 mm

Height adjustment (w/mattress): 805 – 1135 mm

Tabletop: 500 x 1880 mm

Table base: 370 x 830 mm

Head section: 500 x 240 mm

Backrest section: 500 x 490 mm

Seat section: 500 x 510 mm

Right leg section: 235 x 555 mm

Left leg section: 235 x 555 mm

Voltage: 230V, 50Hz

Remote control voltage: DC 5V

Motor inputs: DC 24V, 10A

Battery type: 2 each, DC 12V, 7Ah, maintenance free, lead acid battery

Battery recharge voltage: DC 27.2V

Low battery sound alarm Recharging time (after total discharge): 18 h

References Numbers

M2C 650 0 0

Packing Details

Net weight: 250 kg

Gross weight: 295 kg

Packing dimensions: 1000 x 1680 x 1100 mm

Positions

Head section: Upward 15°, Downward 90° Extendable 5 cm, Removable

Backrest section: Upward 75°, Downward 45° , Upward 45° (w/radiographic tabletop and mattress)

Leg section: Upward 15° , Downward 90° , Spreading 90°, Removable , Independent movement

Lateral: Right 20°, Left 20°

Trendelenburg: 25°

Reverse Trendelendurg: 25°

Lateral nephrectomy: 135°

Reflex: 105° (combined back 75° up and Trendelenburg 25° movements)

Flex: 225° (combined back 45° down and reverse-Trendelenburg 25° movements)

Tabletop: Rotates 355°

Horizontal tabletop sliding: 250 mm

Accesories

Standard Accessories

  1. Anaesthetist’s frame (1 ea)

  2. I.V. stand (1 ea)

  3. Shoulder supports (2 ea) (Optional)

  4. Body supports (2 ea) (Optional)

  5. Surgical table arm boards (2 ea)

  6. Knee crutches (2 ea) (Optional)

  7. Compact stand for surgical table accessories (1 ea) (Optional)

  8. Body strap (1 ea)

  9. Mattress (1 set)

Accessories

  1. Shoulder supports

  2. Body supports

  3. Foot support

  4. Arm support

  5. Wrist grip

  6. Knee rest

  7. Proctology attachment

  8. X-ray cassette holder

  9. W aste tray

  10. Leg rest – Lithotomy position

  11. Arthroscopic knee crutch

  12. Horseshoe headrest

  13. Skull clamp

  14. Crossbar adaptor for skull clamp

  15. Head section, hight adjustable

  16. Arm/hand surgical section

  17. Stand for skull clamp and horseshoe headrest

  18. Knee crutches

  19. Compact stand for surgical table accessory
