Luxline LED Series surgical light shows excellent shadow management function (shadow-free). The professional shadow dilution experiment simulated extreme situations by using tubes and masks proved that Bıçakcılar Luxline LED Series surgical light has sufficient illumination even in extreme situations.


Technical Details

Luminous power (1m distance): 160.000 lux

Light intensity: Adjustable in 10 levels by membrane control panel and adjustable 5 levels by touchless infrared sensor

Light source: LED

LED life time: 50.000 h

Number of Led: 84 (except endo mode leds)

Endo mode: 4 each green leds

Light head diameter: 710 mm

Light head hanging arm: Rotates 360°

Light head: Rotates 270°

Spring arm: 860 mm length, Right 75°, Left 75°, 45° downward, 45° upward, 1125 mm ±20 mm action distance

Action radius: 860 mm

Color rendering index (CRI): ≥95 (4000K)

Color temperature: 4000K±250, 4500K±250, 5000K±250

Light field diameter (1m distance): 180 – 250 mm

Illuminance field diameter L1+L2 (20%): 1200 mm

Light head energy consumption: 70 W

System maximum energy consumption: 450 W

Power/generator input: 220-240 V, 50/60 Hz, Automatic switch over from main supply to battery operating

Recharging time (after total discharge): 15-18 h

Battery type: 2 each, DC 12 V, 12 Ah, maintenance free, lead acid battery

Lighting time with full batter: 3 h

Linear air flow (Laminar flow): It is designed in an ergonomic structure which minimizes turbulence and is fully compatible with the linear air flow system.


References Numbers

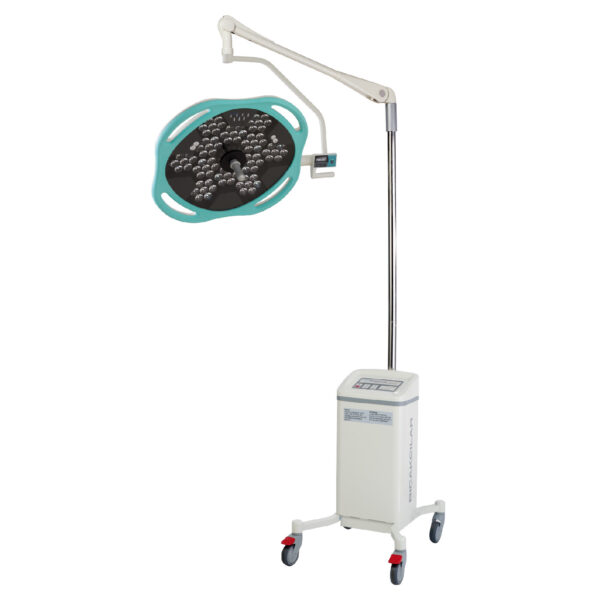

Luxline 1160A LED Surgical Light – With Battery, Mobile : M1A 500 00


Packing Details

Spring arm: 55 x 185 x 920 mm, 5,5 kg

Upper and lower pipe: 1100 x 80 x 60 mm, 4,5 kg

Light head: 1100 x 1100 x 275 mm, 16 kg

Power base: 630 x 630 x 950 mm, 76,5 kg
