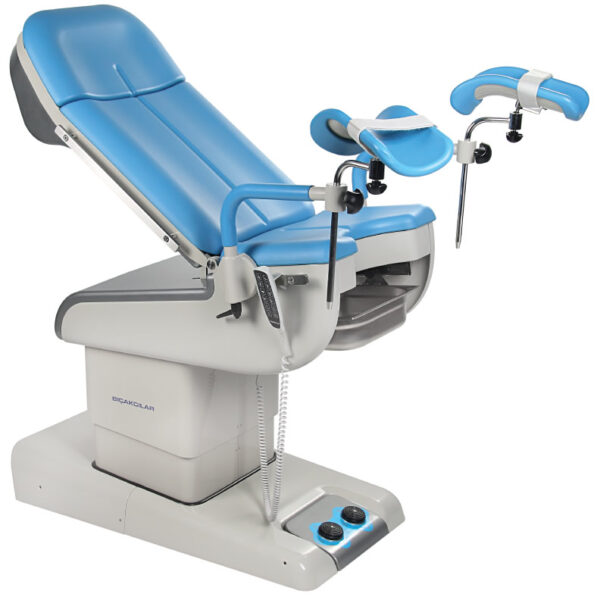

EXAMLINE 740 GYNECOLOGICAL EXAMINATION TABLE

Bıçakcılar Examline 740 Gynecological Examination Table is designed for gynecological, rectoscopy/proctology, urology and urodynamic examinations, minor surgical procedures and obstetric deliveries. With a soft-touch ergonomic design. Examline 740 is constructed with high quality materials providing effective and long operating life in hospitals and clinics.

Technical Details

Height adjustment: 660 – 910mm

Tabletop: 550 x 1270 mm

Table base: 600 x 1085 mm

Head section: 550 x 320 mm

Backrest section: 550 x 600 mm

Seat section: 550 x 385 mm

Length of seat section w/seat extension pad: 550 x 550 mm

Voltage: 230V, 50/60Hz

References Numbers

M2S 300 0 0

Packing Details

Net weight (w/o accessories): 180 kg

Gross weight (w/o accessories): 225 kg

Packing dimensions: 1000 x 1680 x 1100 mm

Positions

Backrest section: 52° upward from horizontal position

Seat section: In combination with backrest section, 19° Trendelenburg and 5° reverse Trendelenburg (providing 600 mm mounting height)

Foot supports: Integrated with handles, can be swiveled to the sides, and moved up and down (to 140 mm from the floor)

Knee crutches: Integrated with handles, can be swiveled to the sides, and moved up and down.

Accesories

Standard Accessories

  1. Knee crutches (2 ea)

  2. Waste tray ( 1 ea)

  3. Examination tissue paper (1 ea)

Accessories

  1. Foot support

  2. Anaesthetist’s frame

  3. I.V. stand

  4. Arm boards

  5. Seat extension pad

  6. Leg section

  7. Examination light (Luxline 40)

  8. Physician stool

  9. Physician stool w/foot control

  10. Physician chair

  11. Physician chair w/foot control
